Phosphor Solutions

Creating unsurpassed color quality & efficacy in lighting.

The Intematix ChromaLit remote phosphor light source is changing the way the market approaches solid-state lighting design. ChromaLit delivers the uniform, glare-free, color consistent lighting now associated with remote phosphor systems.

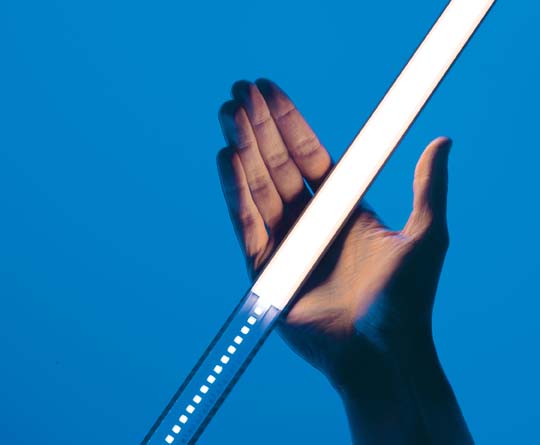

ChromaLit Linear

Compared to conventional LED designs, where blue chips are coated with a phosphor compound, ChromaLit leverages a phosphor composite separated from the blue LED energy source. This architecture provides a more efficient, lower cost manufacturing process, exceptional light quality and up to 30 percent higher system efficacy.

  • Quality of Light: Uniform, glare-free, diffuse light with consistency of lumens and color over life
  • Efficacy: Up to 30% higher lumen per watt than white LEDs
  • Saves Time: New colors with same blue light engine
  • Lower Cost Solution: Less materials and lower supply chain costs with a lower power consumption and lower total cost of ownership
  • Reliable: Offering high volume, global production and a certified quality system
  • Troffers
  • Mid and high bay lighting
  • Cove lighting
  • Architectural lighting
  • Retail lighting
  • Task and under cabinet lighting
  • LED retrofit bulbs
  • Portable consumer lighting
  • Decorative lighting
  • Industrial lighting
  • Entertainment & studio lighting

ChromaLit

Performance Highlights

  • Uniform, glare free lighting
  • Rugged and impact resistant

Applications

  • Down lights
  • Light panels
  • Task lighting

ChromaLit Round ChromaLit Round

Part No. Example Application Typical Lumen Output (lm)1 Diameter (mm) Diameter (in.) CCT (K) CRI Lm/Wrad 2
CL-827-R23-PC Single LED 110-200 22.5 0.9 2700 80 180
CL-927-R23-PC 2700 90 161
CL-830-R23-PC 3000 80 202
CL-930-R23-PC 3000 90 165
CL-835-R23-PC 3500 80 210
CL-840-R23-PC 4000 80 218
CL-750-R23-PC 5000 70 230
CL-827-R34-PC Spot Lighting 220-400 34.0 1.3 2700 80 180
CL-927-R34-PC 2700 90 161
CL-830-R34-PC 3000 80 202
CL-930-R34-PC 3000 90 165
CL-835-R34-PC 3500 80 210
CL-840-R34-PC 4000 80 218
CL-750-R34-PC 5000 70 230
CL-827-SR-PC Downlight 440-800 45.0 1.8 2700 80 180
CL-927-SR-PC 2700 90 161
CL-830-SR-PC 3000 80 202
CL-930-SR-PC 3000 90 165
CL-835-SR-PC 3500 80 210
CL-840-SR-PC 4000 80 218
CL-750-SR-PC 5000 70 230
CL-827-LR-PC 730-1300 61.5 2.4 2700 80 180
CL-927-LR-PC 2700 90 161
CL-830-LR-PC 3000 80 202
CL-930-LR-PC 3000 90 165
CL-835-LR-PC 3500 80 210
CL-840-LR-PC 4000 80 218
CL-750-LR-PC 5000 70 230
CL-827-R75-PC 1100-2000 75.0 3.0 2700 80 180
CL-927-R75-PC 2700 90 161
CL-830-R75-PC 3000 80 202
CL-930-R75-PC 3000 90 165
CL-835-R75-PC 3500 80 210
CL-840-R75-PC 4000 80 218
CL-750-R75-PC 5000 70 230
CL-827-R100-PC 2200-4000 100.0 3.9 2700 80 180
CL-927-R100-PC 2700 90 161
CL-830-R100-PC 3000 80 202
CL-930-R100-PC 3000 90 165
CL-835-R100-PC 3500 80 210
CL-840-R100-PC 4000 80 218
CL-750-R100-PC 5000 70 230
CL-827-R135-PC Downlight 3600-6600 135.0 5.3 2700 80 180
CL-927-R135-PC 2700 90 161
CL-830-R135-PC 3000 80 202
CL-930-R135-PC 3000 90 165
CL-835-R135-PC 3500 80 210
CL-840-R135-PC 4000 80 218
CL-750-R135-PC 5000 70 230
CL-830-R215-PC High Bay 14000-16500 215.0 8.5 3000 80 202
CL-840-R215-PC 4000 80 218
CL-750-R215-PC 5000 70 230

*Product performance based on reference design. Product specifications subject to change
1 Typical lumen output is estimated based on typical blue LED radiometric watts recommended
2 Lm/Wrad: Lumen output per unit of input power from blue LED in radiometric watts

ChromaLit Linear ChromaLit Linear

Part No. Example Application Typical Lumen Output (lm)1 Dimensions L x W (mm) Dimensions L x W (in.) CCT (K) CRI Lm/Wrad2
CL-827-L225-PC Task/Linear/Panel Lighting 950-2400 305.0 x 22.5 12.0 x 0.9 2700 80 180
CL-830-L225-PC 3000 80 202
CL-835-L225-PC 3500 80 210
CL-840-L225-PC 4000 80 218
CL-750-L225-PC 5000 70 230
CL-830-L125-PC 950-1400 305.0 x 12.5 12.0 x 0.5 3000 80 202
CL-835-L125-PC 3500 80 210
CL-840-L125-PC 4000 80 218
CL-750-L125-PC 5000 70 230

*Product performance based on reference design. Product specifications subject to change
1 Typical lumen output is estimated based on typical blue LED radiometric watts recommended
2 Lm/Wrad: Lumen output per unit of input power from blue LED in radiometric watts

ChromaLit Square ChromaLit Square

Part No. Example Application Typical Lumen Output (lm)1 Dimensions L x W (mm) Dimensions L x W (in.) CCT (K) CRI Lm/Wrad2
CL-827-S21-PC Single LED 110-220 21.0 x 21.0 0.8 x 0.8 2700 80 180
CL-927-S21-PC 2700 90 161
CL-830-S21-PC 3000 80 202
CL-930-S21-PC 3000 90 165
CL-835-S21-PC 3500 80 210
CL-840-S21-PC 4000 80 218
CL-750-S21-PC 5000 70 230
CL-827-S40-PC Downlight 440-800 40.0 x 40.0 1.6 x 1.6 2700 80 180
CL-927-S40-PC 2700 90 161
CL-830-S40-PC 3000 80 202
CL-930-S40-PC 3000 90 165
CL-835-S40-PC 3500 80 210
CL-840-S40-PC 4000 80 218
CL-750-S40-PC 5000 70 230
CL-827-S55-PC 730-1300 55.0 x 55.0 2.2 x 2.2 2700 80 180
CL-927-S55-PC 2700 90 161
CL-830-S55-PC 3000 80 202
CL-930-S55-PC 3000 90 165
CL-835-S55-PC 3500 80 210
CL-840-S55-PC 4000 80 218
CL-750-S55-PC 5000 70 230
CL-827-S65-PC Downlight 1100-2000 65.0 x 65.0 2.6 x 2.6 2700 80 180
CL-927-S65-PC 2700 90 161
CL-830-S65-PC 3000 80 202
CL-930-S65-PC 3000 90 165
CL-835-S65-PC 3500 80 210
CL-840-S65-PC 4000 80 218
CL-750-S65-PC 5000 70 230
CL-827-S95-PC 2200-4000 95.0 x 95.0 3.7 x 3.7 2700 80 180
CL-927-S95-PC 2700 90 161
CL-830-S95-PC 3000 80 202
CL-930-S95-PC 3000 90 165
CL-835-S95-PC 3500 80 210
CL-840-S95-PC 4000 80 218
CL-750-S95-PC 5000 70 230
CL-827-S120-PC 3600-6600 120.0 x 120.0 4.7 x 4.7 2700 80 180
CL-927-S120-PC 2700 90 161
CL-830-S120-PC 3000 80 202
CL-930-S120-PC 3000 90 165
CL-835-S120-PC 3500 80 210
CL-840-S120-PC 4000 80 218
CL-750-S120-PC 5000 70 230
CL-830-S200-PC High bay 14000-16500 200.0 x 200.0 7.9 x 7.9 3000 80 202
CL-840-S200-PC 4000 80 218
CL-750-S200-PC 5000 70 230

*Product performance based on reference design. Product specifications subject to change
1 Typical lumen output is estimated based on typical blue LED radiometric watts recommended
2 Lm/Wrad: Lumen output per unit of input power from blue LED in radiometric watts

ChromaLit Panel ChromaLit Panel

Part No. Example Application Typical Lumen Output (lm)1 Dimensions L x W (mm) Dimensions L x W (in.) CCT (K) CRI Lm/Wrad 2
CL-827-P215-PC Custom 15000-27500 305.0 x 215.0 12.0 x 8.5 2700 80 180
CL-927-P215-PC 2700 90 161
CL-830-P215-PC 3000 80 202
CL-930-P215-PC 3000 90 165
CL-835-P215-PC 3500 80 210
CL-840-P215-PC 4000 80 218
CL-750-P215-PC 5000 70 230

*Product performance based on reference design. Product specifications subject to change
1 Typical lumen output is estimated based on typical blue LED radiometric watts recommended
2 Lm/Wrad: Lumen output per unit of input power from blue LED in radiometric watts

ChromaLit XT

Performance Highlights

  • High lumen output
  • Tempered glass option
  • Off state neutral color

Applications

  • Down lights
  • Outdoor
  • High bay / Industrial

ChromaLit Round ChromaLit Round XT

Part No. Example Application Typical Lumen Output (lm)1 Diameter (mm) Diameter (in.) CCT (K) CRI Typical Lm/Wrad 2
CL-827-R23-XT Spot 500 22.5 0.9 2700 80 190
CL-927-R23-XT 2700 90 160
CL-830-R23-XT 3000 80 197
CL-930-R23-XT 3000 90 165
CL-835-R23-XT 3500 80 205
CL-840-R23-XT 4000 80 215
CL-750-R23-XT 5000 70 232
CL-827-R34-XT 1100 34 1.3 2700 80 190
CL-927-R34-XT 2700 90 160
CL-830-R34-XT 3000 80 197
CL-930-R34-XT 3000 90 165
CL-835-R34-XT 3500 80 205
CL-840-R34-XT 4000 80 215
CL-750-R34-XT 5000 70 232
CL-827-R45-XT Module, Downlight, Area Lighting 2000 45 1.8 2700 80 190
CL-927-R45-XT 2700 90 160
CL-830-R45-XT 3000 80 197
CL-930-R45-XT 3000 90 165
CL-835-R45-XT 3500 80 205
CL-840-R45-XT 4000 80 215
CL-840-R45-XT 4000 80 215
CL-750-R45-XT 5000 70 232
CL-827-R62-XT 3700 61.5 2.4 2700 80 190
CL-927-R62-XT 2700 90 160
CL-830-R62-XT 3000 80 197
CL-930-R62-XT 3000 90 165
CL-835-R62-XT 3500 80 205
CL-840-R62-XT 4000 80 215
CL-750-R62-XT 5000 70 232
CL-827-R75-XT 5500 75 3 2700 80 190
CL-927-R75-XT 2700 90 160
CL-830-R75-XT 3000 80 197
CL-930-R75-XT 3000 90 165
CL-835-R75-XT 3500 80 205
CL-840-R75-XT 4000 80 215
CL-750-R75-XT 5000 70 232
CL-827-R100-XT 10000 100 3.9 2700 80 190
CL-830-R100-XT 3000 80 197
CL-930-R100-XT 3000 90 165
CL-835-R100-XT 3500 80 205
CL-840-R100-XT 4000 80 215
CL-750-R100-XT 5000 70 232

*Product performance based on reference design. Product specifications subject to change
1 Typical lumen output is estimated based on typical blue LED radiometric watts recommended
2 Lm/Wrad: Lumen output per unit of input power from blue LED in radiometric watts

ChromaLit Linear ChromaLit Linear XT

Part No. Example Application Typical Lumen Output (lm)1 Dimensions L x W (mm) Dimensions L x W (in.) CCT (K) CRI Typical Lm/Wrad2
CL-830-L152-XT Task/Linear/Panel Lighting 4300 152.5 x 22.5 6.0 x 0.9 3000 80 197
CL-835-L152-XT 3500 80 205
CL-840-L152-XT 4000 80 215

*Product performance based on reference design. Product specifications subject to change
1 Typical lumen output is estimated based on typical blue LED radiometric watts recommended
2 Lm/Wrad: Lumen output per unit of input power from blue LED in radiometric watts

ChromaLit Square ChromaLit Square XT

Part No. Example Application Typical Lumen Output (lm)1 Dimensions L x W (mm) Dimensions L x W (in.) CCT (K) CRI Lm/Wrad2
CL-827-S65-XT Spot Downlight Area Lighting 5300 65.0 x 65.0 2.6 x 2.6 2700 80 190
CL-927-S65-XT 2700 90 160
CL-830-S65-XT 3000 80 197
CL-930-S65-XT 3000 90 165
CL-835-S65-XT 3500 80 205
CL-840-S65-XT 4000 80 215
CL-750-S65-XT 5000 70 232
CL-827-S95-XT 11300 95.0 x 95.0 3.7 x 3.7 2700 80 190
CL-927-S95-XT 2700 90 160
CL-927-S95-XT 2700 90 160
CL-830-S95-XT 3000 80 205
CL-930-S95-XT 3000 90 165
CL-835-S95-XT 3500 80 205
CL-840-S95-XT 4000 80 215
CL-750-S95-XT 5000 70 232

*Product performance based on reference design. Product specifications subject to change
1 Typical lumen output is estimated based on typical blue LED radiometric watts recommended
2 Lm/Wrad: Lumen output per unit of input power from blue LED in radiometric watts

ChromaLit 360

Performance Highlights

  • 3D light emission surface
  • Omni-directional lighting
  • Energy Star pattern capable

Applications

  • Retrofit lamps
  • Decorative lamps
  • Pendants, Sconces

  • ChromaLit Candle ChromaLit Candle

    Part No. Example Application Typical Lumen Output (lm)1 Maximum Diameter (mm) Height (mm) CCT (K) CRI Lm/Wrad 2
    CL-827-CAN15-PC LED retrofit lamp/ lantern/ chandelier 70-150 11.9 16.0 2700 80 180
    CL-927-CAN15-PC 2700 90 165
    CL-830-CAN15-PC 3000 80 200
    CL-930-CAN15-PC 3000 90 170
    CL-835-CAN15-PC 3500 80 205
    CL-840-CAN15-PC 4000 80 210
    CL-750-CAN15-PC 5000 70 225
    CL-827-CAN30-PC LED retrofit lamp/ lantern/ chandelier 150-300 16.9 24.2 2700 80 180
    CL-927-CAN30-PC 2700 90 165
    CL-830-CAN30-PC 3000 80 200
    CL-930-CAN30-PC 3000 90 170
    CL-835-CAN30-PC 3500 80 205
    CL-840-CAN30-PC 4000 80 210
    CL-750-CAN30-PC 5000 70 225
    CL-827-CAN40-PC LED retrofit lamp/ lantern/ chandelier 300-700 26.6 35.0 2700 80 180
    CL-927-CAN40-PC 2700 90 165
    CL-830-CAN40-PC 3000 80 200
    CL-930-CAN40-PC 3000 90 170
    CL-835-CAN40-PC 3500 80 205
    CL-840-CAN40-PC 4000 80 210
    CL-750-CAN40-PC 5000 70 225

    *Product performance based on reference design. Product specifications subject to change
    1 Typical lumen output is estimated based on typical blue LED radiometric watts recommended
    2 Lm/Wrad: Lumen output per unit of input power from blue LED in radiometric watts

    ChromaLit Ellipse ChromaLit Ellipse

    Part No. Example Application Typical Lumen Output (lm)1 Maximum Diameter (mm) Height (mm) CCT (K) CRI Lm/Wrad 2
    CL-827-ELP30-PC LED retrofit lamp/ pathway and landscape lighting/ chandelier 200-350 15.3 26.5 2700 80 180
    CL-927-ELP30-PC 2700 90 165
    CL-830-ELP30-PC 3000 80 200
    CL-930-ELP30-PC 3000 90 170
    CL-835-ELP30-PC 3500 80 205
    CL-840-ELP30-PC 4000 80 210
    CL-750-ELP30-PC 5000 70 225
    CL-827-ELP40-PC LED retrofit lamp/ pathway and landscape lighting/ chandelier 350-600 23.0 32.9 2700 80 180
    CL-927-ELP40-PC 2700 90 165
    CL-830-ELP40-PC 3000 80 200
    CL-930-ELP40-PC 3000 90 170
    CL-835-ELP40-PC 3500 80 205
    CL-840-ELP40-PC 4000 80 210
    CL-750-ELP40-PC 5000 70 225
    CL-827-ELP60-PC LED retrofit lamp/ pathway and landscape lighting/ chandelier 550-850 26.3 40.4 2700 80 180
    CL-927-ELP60-PC 2700 90 165
    CL-830-ELP60-PC 3000 80 200
    CL-930-ELP60-PC 3000 90 170
    CL-835-ELP60-PC 3500 80 205
    CL-840-ELP60-PC 4000 80 210
    CL-750-ELP60-PC 5000 70 225

    *Product performance based on reference design. Product specifications subject to change
    1 Typical lumen output is estimated based on typical blue LED radiometric watts recommended
    2 Lm/Wrad: Lumen output per unit of input power from blue LED in radiometric watts

    ChromaLit Dome ChromaLit Dome

    Part No. Example Application Typical Lumen Output (lm)1 Maximum Diameter (mm) Height (mm) CCT(K) CRI Typical Conversion Efficacy (Lm/Wrad)2
    CL-827-DOM15-PC Miniature lamps/ landscape lighting/ single LED applications 100-200 14.0 13.8 2700 80 180
    CL-927-DOM15-PC 2700 90 165
    CL-830-DOM15-PC 3000 80 200
    CL-930-DOM15-PC 3000 90 170
    CL-835-DOM15-PC 3500 80 205
    CL-840-DOM15-PC 4000 80 210
    CL-750-DOM15-PC 5000 70 225
    CL-827-DOM40-PC LED retrofit lamp/ pendants/ wall sconce/ ceiling fixtures 300-600 33.0 20.5 2700 80 180
    CL-927-DOM40-PC 2700 90 165
    CL-830-DOM40-PC 3000 80 200
    CL-930-DOM40-PC 3000 90 170
    CL-835-DOM40-PC 3500 80 205
    CL-840-DOM40-PC 4000 80 210
    CL-750-DOM40-PC 5000 70 225
    CL-827-DOM60-PC LED retrofit lamp/ pendants/ wall sconce/ ceiling fixtures 600-1000 42.0 26.1 2700 80 180
    CL-927-DOM60-PC 2700 90 165
    CL-830-DOM60-PC 3000 80 200
    CL-930-DOM60-PC 3000 90 170
    CL-835-DOM60-PC 3500 80 205
    CL-840-DOM60-PC 4000 80 210
    CL-750-DOM60-PC 5000 70 225
    CL-827-DOM100-PC LED retrofit lamp/ pendants/ wall sconce/ ceiling fixtures 1000-1600 55.0 34.1 2700 80 180
    CL-927-DOM100-PC 2700 90 165
    CL-830-DOM100-PC 3000 80 200
    CL-930-DOM100-PC 3000 90 170
    CL-835-DOM100-PC 3500 80 205
    CL-840-DOM100-PC 4000 80 210
    CL-750-DOM100-PC 5000 70 225

    *Product performance based on reference design. Product specifications subject to change
    1 Typical lumen output is estimated based on typical blue LED radiometric watts recommended
    2 Lm/Wrad: Lumen output per unit of input power from blue LED in radiometric watts

    ChromaLit Contour ChromaLit Contour

    Part No. Example Application Typical Lumen Output (lm)1 Maximum Diameter (mm) Height (mm) CCT (K) Min CRI Conversion Efficacy (lm/Wrad)2
    CL-827-CTR75-PC Retrofit Lamp 1100 60 18.7 2700 80 185
    CL-927-CTR75-PC 2700 90 145
    CL-830-CTR75-PC 3000 80 195
    CL-930-CTR75-PC 3000 90 150
    CL-850-CTR75-PC 5000 80 200
    CL-827-CTR100-PC 1600 25.6 2700 80 185
    CL-927-CTR100-PC 2700 90 145
    CL-830-CTR100-PC 3000 80 195
    CL-930-CTR100-PC 3000 90 150
    CL-850-CTR100-PC 5000 80 200
    CL-827-CTR150-PC 2600 76.0 31.0 2700 80 185
    CL-927-CTR150-PC 2700 90 145
    CL-830-CTR150-PC 3000 80 195
    CL-930-CTR150-PC 3000 90 150
    CL-850-CTR150-PC 5000 80 200

    *Product performance based on reference design. Product specifications subject to change
    1 Typical lumen output is estimated based on typical blue LED radiometric watts recommended
    2 Lm/Wrad: Lumen output per unit of input power from blue LED in radiometric watts

    ChromaLit Linear

    Performance Highlights

    • High lumen output
    • Unlimited length possibilities
    • Uniform, glare free lighting
    • White off-state

    Applications

  • Area lighting
  • Troffers
  • Under cabinet
  • Mid and High Bay

  • ChromaLit Linear ChromaLit Linear

    Part No. Example Application Typical Lumen Output (lm)1 CCT (K) CRI Lm/Wrad 2
    CL-927-LIN01-PC0 Troffers/Undercabinet/High Bay
    970 2700 90 170
    CL-830-LIN01-PC0 1200 3000 80 210
    CL-930-LIN01-PC0 1030 3000 90 180
    CL-835-LIN01-PC0 1225 3500 80 215
    CL-840-LIN01-PC0 1250 4000 80 220
    CL-850-LIN01-PC0 1250 5000 80 220

    *Product performance based on reference design. Product specifications subject to change
    1 Typical lumen output is estimated based on typical blue LED radiometric watts recommended
    2 Lm/Wrad: Lumen output per unit of input power from blue LED in radiometric watts
